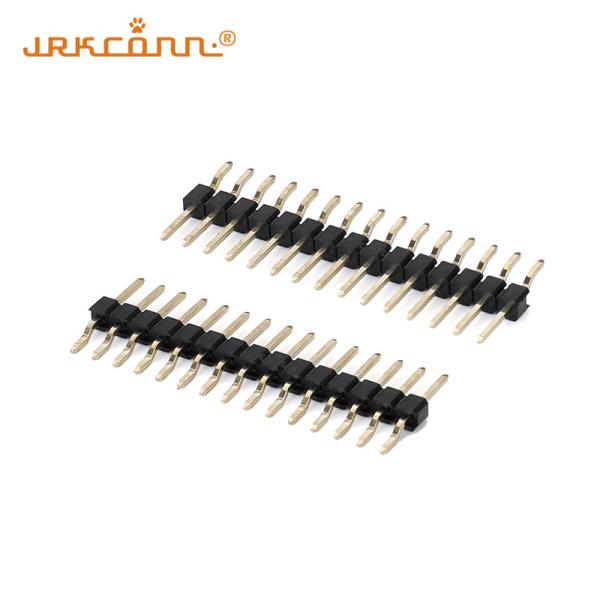

    Circuit Board Connectors Pin Header 2.54 Mm Pin Connector Male Berg Strip

    Ask Lasest Price
    Brand Name : Jrkconn
    Model Number : JFPH11HM Series
    Certification : ISO9001
    Price : Contact Us
    Payment Terms : T/T
    Supply Ability : 1000000 per week
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Circuit Board Connectors Pin Header 2.54 Mm Pin Connector Male Berg Strip

    Circuit Board Connectors Pin Header 2.54 Mm Pin Connector Male Berg Strip



    Printed circuit board connectors, also known as PCB connectors, are a type of electrical connector. They consist of housing and contacts that join sections of circuits together on PCBs, which are boards on which conductive tracks for electronic components are printed.

    Printed Circuit Board Connector 90 Degree Pin Header 2.54 Male To Male Header Pins Specifications


    Insulator MaterialBlack Polyester UL94V-0
    Standard

    PA6T + 30%G.F

    SleeveBrass
    PlatedGold-plated, tin-plated
    Pitch2.0mm / 2.54mm / 3.96 mm
    RowSingle / Dual row
    Pins4-80 P
    Rated Current3Amps
    Insulator Resistance1000mΩ
    Contact Resistance20mΩ
    Withstanding Voltage550V AC/minute
    Operating TemperaturesGold plated: -55℃~ +105℃ Tin plated: -40℃ ~ +105℃
    Soldering Temperature260℃,10s max.



    Circuit Board Connectors Pin Header 2.54 Mm Pin Connector Male Berg Strip Packing & Delivery


    Packing:


    Selling unitsSingle item
    PackageTube / PE bag/tray/tape & reel packing
    PortShenzhen

    Delivery:

    Quantity (pcs)1 - 100K> 100K
    Estimated delivery time
    (business day)
    15
    To be negotiated





    Circuit Board Connectors Pin Header 2.54 Mm Pin Connector Male Berg Strip Custom Process


    Many products are available that are not listed on the website. If you do not see what you want, please get in touch with us.


    How to choose a pin header connector:


    1. Tell us the pitch of the product you want, the standard is 1.27mm, 2.0mm, 2.54mm, and 3.96mm, and the special pitch.
    2. Tell us the material of the pin and insulator.
    3. Tell us the plating that you want, eg, Gold plating, Tin plating, or other plating.
    4. Tell us the mounting type you need. There are Through hole (TH), Right angle (RA), Straight Type (ST), Surface Mount Type (SMT) for your options.
    5. Tell us your requirements.
    6. Custom service is available.



    The Application Fields:


    Our Advantages:


    1. Jrkconn is s front-line manufacturer.
    2. Having an authoritative quality and product certification.
    3. Fast delivery time, our lead time is always 7-15 business days.
    4. Raw material supply chain with a reliable quality system certification.
    5. Connector customization service is available.

    FAQ

    1. Are you a manufacturer or a trade company?

    We are a professional manufacturer with 15 years of experience specializing in electronic connectors. Our main products are pin headers, female headers, box headers, ejector headers, DIN41612 connectors, pins, and other electronic connectors, with good quality and competitive prices.

    2. Can I get the sample before placing a purchase order?

    Yes, we provide the samples for our customers to check the quality of the product.
    We recommend that our customers take samples from us before placing an order. This will help customers better understand our product and quality.
    They are free for 1 or 2 pieces of samples, customers only pay the express courier cost.

    3. What is the sample lead time?

    The standard sample delivery date is about 3~5 working days, and the customized samples need 7~10 working days.

    4. What information do you need if we want to custom connector?

    Please send us your drawing or sample.

    5. What is your after-sales service?

    If a customer finds a quality problem, please contact us; we will study the problem and provide solutions as fast as possible.
